BMS Transmission Oil Cooler for 2022+ Toyota Tundra 3.4L Twin Turbo

Keep transmission temperatures under control in your 2022+ Toyota Tundra 3.4L Twin Turbo with the BMS Heavy-Duty High-Capacity Transmission Oil Cooler from Burger Motorsports. Designed specifically for the third-generation Tundra, this upgraded air-to-transmission-fluid cooler adds substantial cooling capacity for trucks exposed to towing, hauling, off-road driving, increased power levels, or high ambient temperatures.

Heat is one of the biggest enemies of an automatic transmission. Sustained loads from towing, heavy payloads, off-road driving, steep grades, or performance modifications can increase transmission-fluid temperatures and place additional thermal stress on the fluid and transmission components. The BMS cooler provides an additional dedicated heat exchanger to help dissipate this excess heat and maintain more stable transmission-fluid temperatures during demanding operation.

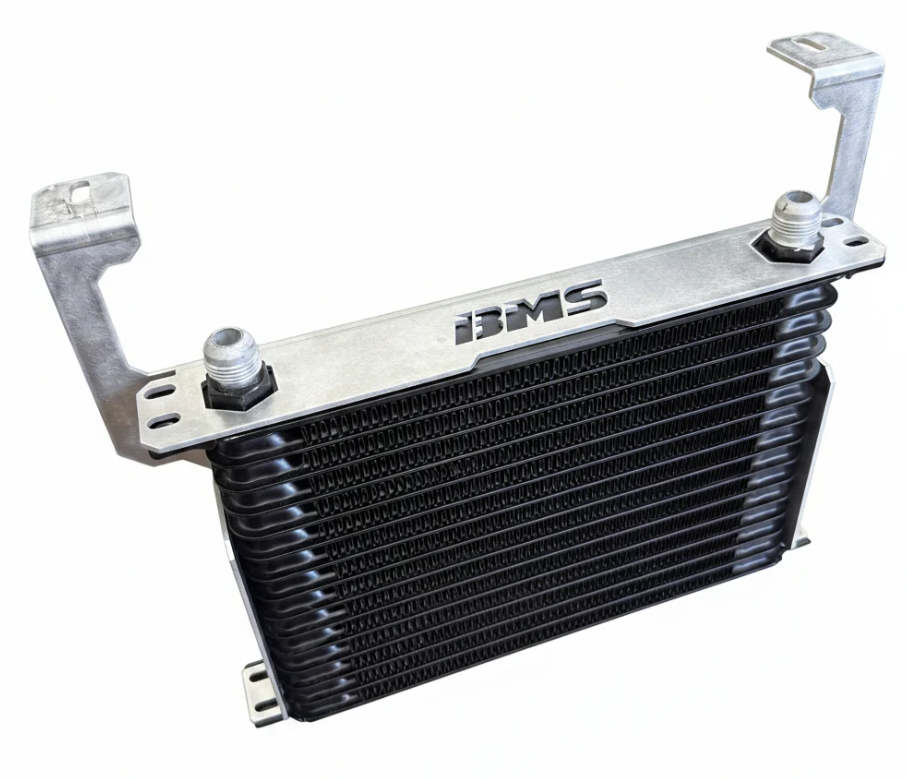

The BMS system uses a large front-mounted air-to-ATF cooling core positioned inside the front bumper, where existing openings provide airflow across the cooler. This dedicated air-to-fluid design helps remove transmission heat directly through ambient airflow rather than adding that thermal load to the engine coolant circuit. The result is improved heat management and more consistent transmission performance under sustained load.

BMS designed this system as a plug-and-play installation specifically for the 2022+ Tundra. The kit includes a custom laser-cut aluminum mounting bracket, heavy-duty -10AN PTFE stainless-steel/nylon braided hoses, billet adapters, aluminum fittings, and the necessary installation hardware. BMS states that installation does not require removal of the front of the truck, simplifying installation compared with more invasive transmission cooler upgrades.

Another advantage is the additional transmission-fluid capacity created by the system. BMS states that the cooler increases total ATF capacity by approximately one quart. The additional fluid volume, combined with the larger cooling core, helps slow temperature rise, stabilize temperatures for longer periods, and reduce thermal stress on the transmission fluid during extended heavy use.

For Tundra owners who regularly tow, haul, off-road, drive in hot climates, or run higher-than-stock power levels, the BMS Transmission Oil Cooler provides a purpose-built cooling solution designed to help protect the transmission while supporting more consistent performance.

Features & Benefits

• Designed for 2022+ Toyota Tundra 3.4L Twin Turbo
• Heavy-duty, high-capacity transmission oil cooler
• Large air-to-ATF cooling core
• Front-mounted design for direct airflow
• Helps reduce transmission-fluid temperatures
• Helps control peak ATF temperatures under sustained load
• Increased cooling capacity compared with the factory system
• Adds approximately 1 quart of transmission-fluid capacity
• Additional ATF capacity helps slow temperature rise
• Helps maintain more stable fluid temperatures
• Reduces thermal stress on transmission fluid and components
• Dedicated transmission cooling keeps added heat out of the engine coolant circuit
• Heavy-duty BMS -10AN transmission lines
• PTFE stainless-steel/nylon braided hoses
• Heavy-duty -10AN aluminum fittings
• Billet -10AN adapters
• Custom laser-cut aluminum mounting bracket
• Installs inside the front bumper
• Uses existing front openings for airflow
• Front of truck does not need to be removed for installation
• Excellent upgrade for towing and hauling
• Recommended for off-road use and high-temperature environments
• Ideal for modified Tundras producing increased power

Why Upgrade the Transmission Cooler?

Automatic transmission fluid performs several critical jobs, including lubrication, hydraulic operation, and heat management. When the transmission is subjected to sustained heavy loads, fluid temperatures can increase significantly.

Common situations that can increase transmission heat include:

• Towing trailers
• Heavy hauling
• Long uphill grades
• Slow-speed off-road driving
• Sand and desert driving
• High ambient temperatures
• Increased engine power and torque
• Performance tuning

By adding a large dedicated air-to-ATF heat exchanger and additional fluid capacity, the BMS system is designed to help manage that heat before temperatures become excessive.

Increased Transmission Fluid Capacity

The BMS cooler system increases the Tundra's transmission-fluid capacity by approximately one quart.

The additional fluid volume provides greater thermal capacity, meaning more energy is required to raise the overall temperature of the transmission fluid. Combined with the additional cooling surface area, this helps:

• Slow transmission-fluid temperature rise
• Maintain more stable temperatures during extended loads
• Reduce thermal stress on ATF
• Improve cooling recovery
• Support consistent transmission performance

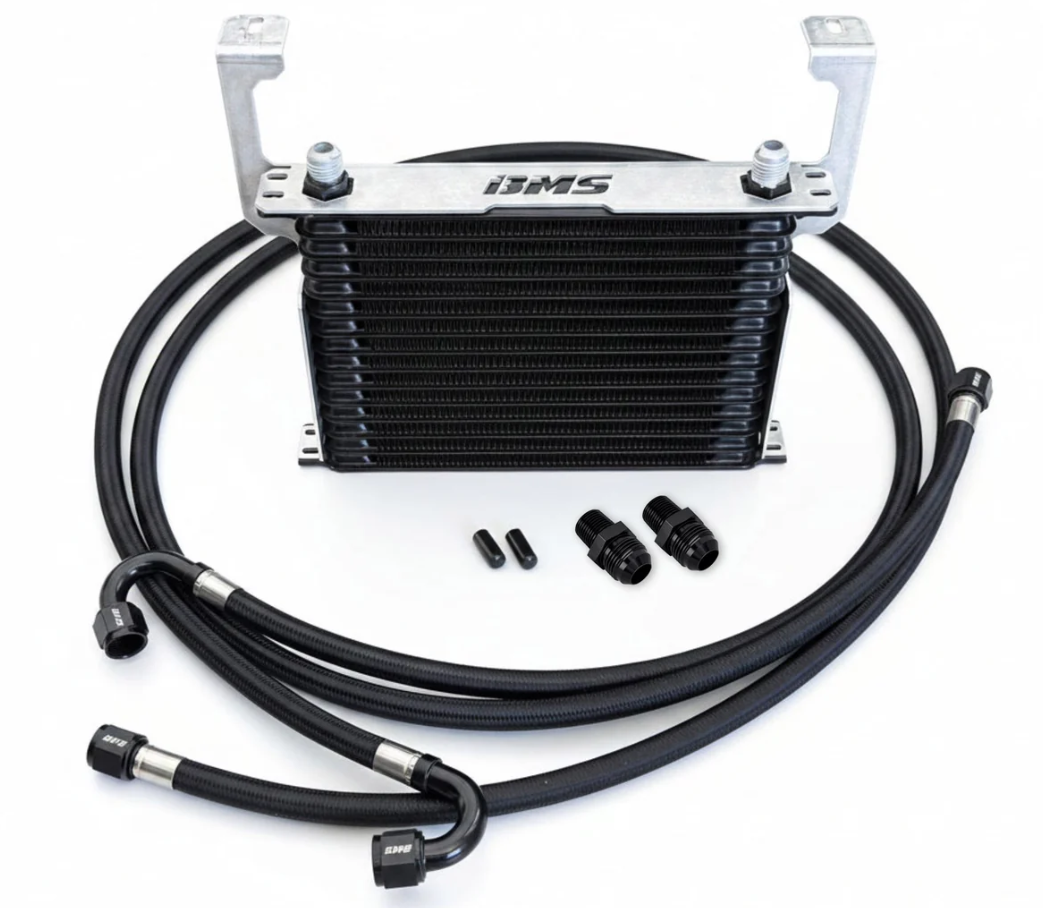

What's Included

• One (1) Heavy-Duty Transmission Oil Cooler
• Two (2) 90" -10AN PTFE stainless-steel/nylon braided hoses
• One (1) laser-cut aluminum mounting bracket
• Two (2) billet -10AN adapters
• Eight (8) M6 × 12 bolts
• Eight (8) M6 nuts
• Sixteen (16) M6 washers
• One (1) M8 bolt
• Two (2) M8 washers
• One (1) M8 nut

Vehicle Fitment

Toyota Tundra

• 2022+ Toyota Tundra
• 3.4L V6 Twin Turbo
• Non-Hybrid models

Important: BMS specifically states that this transmission cooler does not fit hybrid models.

That hybrid exclusion should be clearly displayed on the Rogue Offroad listing to help prevent incorrect orders.
