Turn your 2025–2026 Toyota 4Runner into a more capable overland, camping, and off-road platform with the Diode Dynamics x Kuat DEK Roof Rack with integrated Stage Series SS40 LED Lightbar. Developed through a collaboration between Diode Dynamics and Kuat, the DEK combines a low-profile, all-metal cargo rack with powerful forward-facing auxiliary lighting engineered directly into the rack for a clean, integrated appearance.
Rather than mounting a universal lightbar on top of an existing rack, the DEK was custom-fabricated around integrated Diode Dynamics lighting. The Stage Series configuration positions an SS40 LED Lightbar directly at the front of the rack, maintaining a streamlined profile while providing serious usable light output for nighttime trail driving, overlanding, camping, and remote travel.

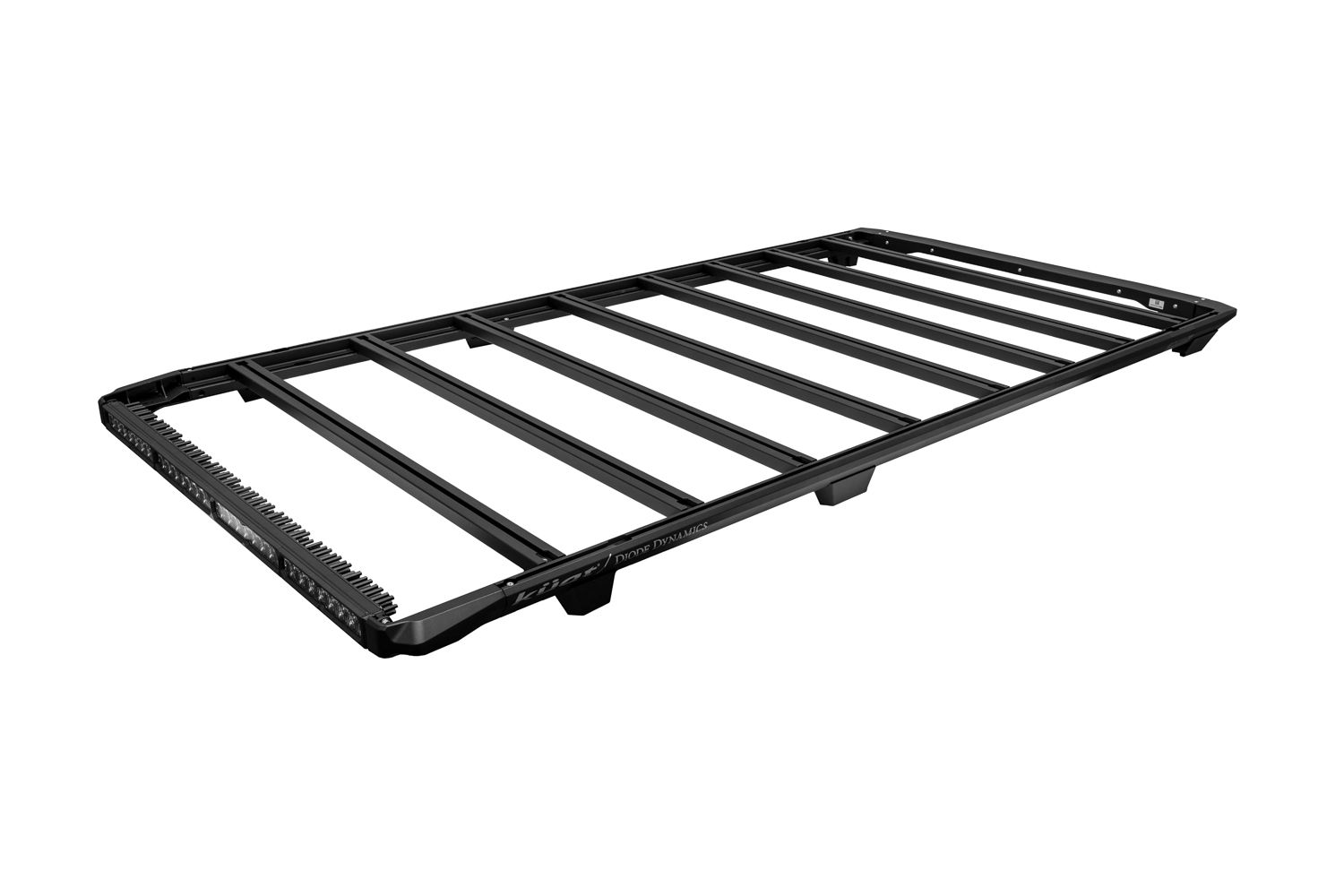

The DEK itself features durable all-metal construction engineered to support rooftop tents, recovery equipment, camping gear, storage cases, and other adventure equipment while remaining relatively lightweight. Adjustable crossbars allow the rack layout to be configured around different cargo and accessories, and integrated T-channels provide versatile attachment points without requiring permanent mounting locations.
For the sixth-generation 4Runner application, the rack is designed as a direct-mount system requiring no drilling. Installation uses the vehicle's existing mounting provisions, giving owners the functionality of a full-length adventure rack without requiring permanent modifications to the roof. Diode Dynamics estimates installation at approximately 2–3 hours with basic tools and lists no vehicle modification as necessary.
Cargo capability is substantial. Diode Dynamics rates the DEK at 300 lb dynamic capacity and 1,000 lb static capacity. The higher static capacity makes the rack suitable for properly configured rooftop tent applications when the vehicle is parked, while the 300-pound dynamic rating applies when the vehicle and rack are in motion.
The adjustable crossbars can also be positioned to accommodate roof-mounted equipment and help clear antennas and sunroofs. This flexibility makes the rack suitable for anything from a relatively simple cargo setup to a more comprehensive overland configuration with a rooftop tent, recovery boards, storage, and additional accessories.
Integrated Stage Series SS40 Lightbar
This Rogue Offroad listing is specifically for the Stage Series Lightbar configuration of the DEK rack.

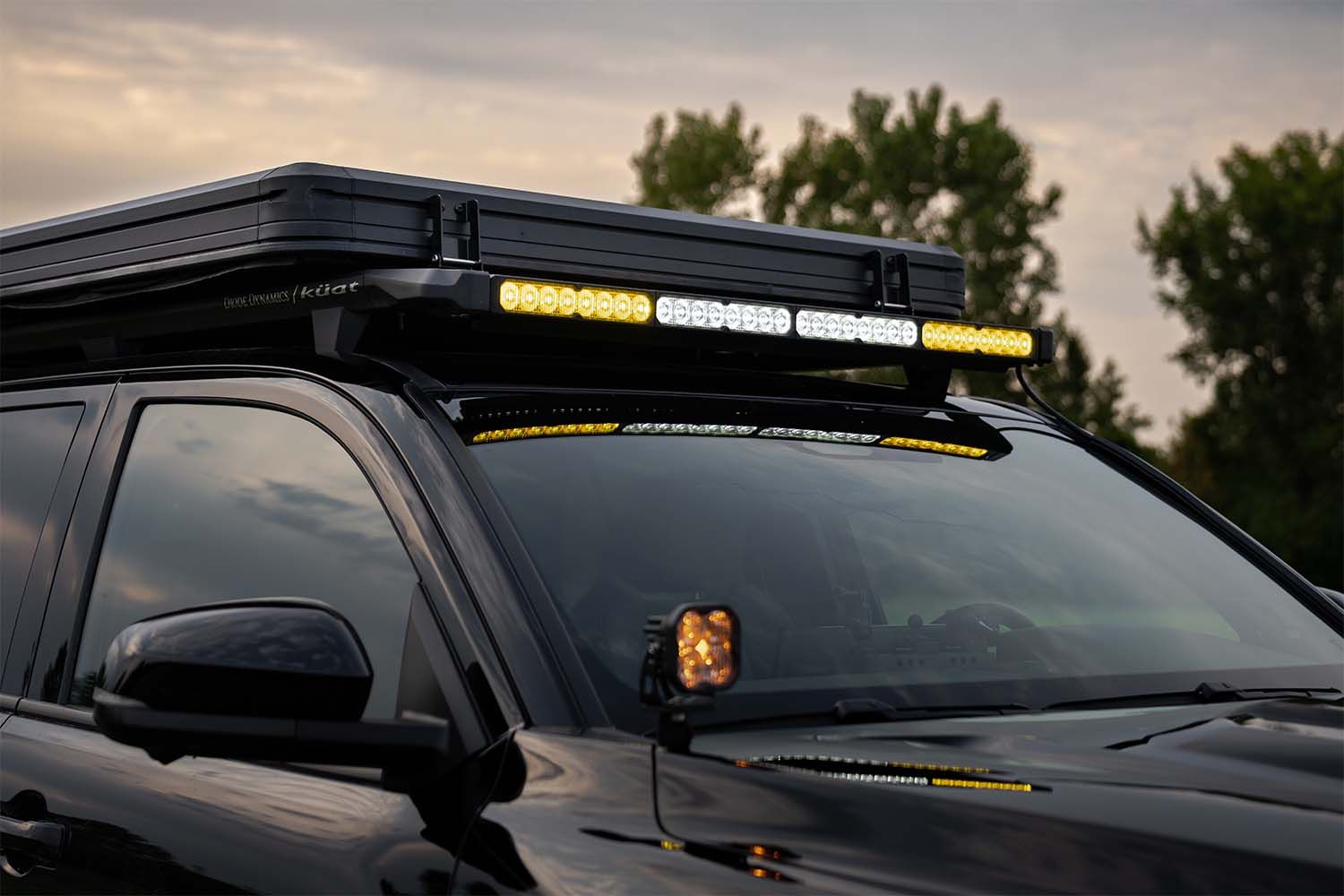

For the 2025–2026 4Runner, Diode Dynamics pairs the rack with its 40-inch SS40 Stage Series LED Lightbar. The SS40 provides a much cleaner, lower-profile appearance than the alternative seven-pod SS5 CrossLink configuration while still delivering extremely high forward-facing output.
The Stage Series lightbar uses Diode Dynamics' advanced TIR (Total Internal Reflection) optics. Rather than allowing a significant amount of light to scatter inside a traditional reflector, the TIR optic captures and directs the LED output into a carefully engineered beam pattern, reducing wasted light and putting more usable illumination where the driver needs it.
Combo/Driving Beam Pattern
The SS40 included with the DEK uses Diode Dynamics' Combo/Driving beam pattern.
Instead of simply combining separate spot and flood sections—which can create a harsh central hotspot and excessive foreground illumination—Diode Dynamics developed an array of individual pillow optics to produce a more evenly blended beam.
The resulting pattern measures approximately 60 x 30 degrees, combining:
-
Long-range visibility
-
Useful beam width
-
Foreground illumination
-
Smooth transition throughout the beam
-
Reduced wasted light and glare
This makes the SS40 particularly well suited for nighttime trail driving where both distance and peripheral visibility are important.
Choose Sport or Pro Output
The Stage Series SS40 configuration is available in both Sport and Pro power levels.
SS40 Sport White
-
14,752 raw lumens
-
204,000 candela peak beam intensity
-
2,040 lux @ 10 meters
-
6000K cool white output
SS40 Pro White
-
50,176 raw lumens
-
281,000 candela peak beam intensity
-
2,810 lux @ 10 meters
-
6000K cool white output
The Sport configuration provides excellent output and value for recreational off-road use, while the Pro configuration delivers a substantial increase in overall output for customers wanting maximum forward illumination.
White or Dual-Color Lighting
Diode Dynamics also offers the Stage Series configuration in White and Dual-Color versions.
The standard White SS40 provides a 6000K cool-white main beam along with an amber backlight.
The Dual-Color configuration provides even greater flexibility. It combines cool-white inner segments with selective-yellow outer segments and uses Diode Dynamics' SmartSelect technology to allow the driver to choose:
-
Inner lightbar segments
-
Outer lightbar segments
-
Entire lightbar
The operating mode is changed by cycling power rather than requiring additional switches or complicated wiring.
Fully Illuminated Backlight
Stage Series lightbars also feature a fully illuminated backlight, allowing the TIR optics themselves to illuminate when the primary driving beam isn't being used.
The White configuration includes an amber backlight.
Dual-Color SmartSelect configurations provide a selectable multicolor backlight with eight available colors and add a dynamic startup sequence.
This provides the rack with a distinctive appearance while also adding useful visibility when the vehicle is stopped on the trail.
Adjustable Crossbars & T-Channels
The DEK's adjustable crossbars make it considerably more versatile than a fixed-position cargo rack.
Integrated T-channels provide flexible mounting locations for equipment such as:
-
Rooftop tents
-
Recovery boards
-
Cargo cases
-
Camping equipment
-
Awning systems
-
Recovery gear
-
Other compatible T-channel accessories
Crossbar positioning can also be adjusted to help clear roof antennas and sunroofs.
300 LB Dynamic / 1,000 LB Static Capacity
Diode Dynamics publishes two separate load ratings for the DEK:
Dynamic Capacity: 300 lb
This is the rack's rated load capacity while the vehicle is moving.
Static Capacity: 1,000 lb
This applies while the vehicle is stationary and is particularly relevant when using a properly installed rooftop tent.
Keeping these ratings separate on the Rogue product page is important so customers don't mistake the 1,000-pound static rating for the allowable driving load.
All-Metal Construction
The Kuat DEK features durable all-metal construction designed to provide the strength required for serious cargo and overland use without creating an unnecessarily bulky roof-rack profile.
Diode Dynamics specifically describes the rack as engineered to support rooftop tents and mounted gear while remaining lightweight.
No-Drill Installation
The 2025–2026 Toyota 4Runner DEK is an application-specific rack and does not require drilling.
Manufacturer installation information specifies:
-
Installation Time: Approximately 2–3 hours
-
Tools: Basic tool set
-
Modification: None
-
Drilling: Not required
That is a major advantage for customers who want a full-size rack and integrated lighting without permanently modifying the 4Runner's roof.
Built for Harsh Environments
Diode Dynamics Stage Series lighting is engineered and tested for demanding automotive and off-road environments.
Manufacturer specifications include:
-
Operating temperature from -40°F to 185°F
-
IP69K waterproof/high-pressure intrusion rating
-
SAE J575 durability testing
-
Passive cooling
-
Aluminum housing/heatsink construction
-
Automotive-grade LED technology
Diode Dynamics states that its included lighting is engineered and made in the USA using globally sourced materials.
Features & Benefits
-
Designed for 2025–2026 Toyota 4Runner
-
Diode Dynamics x Kuat collaboration
-
Kuat DEK low-profile roof rack
-
Integrated Diode Dynamics SS40 Stage Series LED Lightbar
-
Application-specific installation
-
No drilling required
-
Durable all-metal construction
-
Adjustable crossbars
-
Integrated T-channels
-
Crossbars can be positioned to clear antennas and sunroofs
-
300 lb dynamic load capacity
-
1,000 lb static load capacity
-
Designed to support properly configured rooftop tent and cargo applications
-
SS40 Combo/Driving beam
-
Approximately 60 x 30-degree beam pattern
-
Available in Sport and Pro power levels
-
White and Dual-Color lighting configurations available
-
Fully illuminated backlight
-
Advanced TIR optics
-
Interchangeable lightbar lenses
-
IP69K-rated Stage Series lighting
-
Wiring and mounting hardware included
-
Limited Lifetime Warranty
What's Included
Diode Dynamics lists the 2025–2026 4Runner DEK package as including:
-
One (1) Kuat DEK Roof Rack
-
One (1) Stage Series SS40 LED Lightbar
-
Two (2) lightbar mounting brackets
-
Four (4) zip ties
-
One (1) universal adhesive wire hider
-
Necessary wiring harnesses
-
Necessary mounting hardware
